Square and Rectangle Refueling Tanks

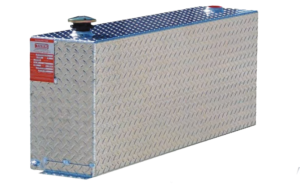

The rectangle Refueling Transfer Tank is the most popular in the lineup. Our standard fuel tanks range from 38 to 110 gallons. The Two- 2” bungs allow for reversing the fuel fill cap and fuel transfer pump to the side you prefer best. The rectangle fuel tank is also the ideal shape if you require a double wall refueling transfer tank for you specific application. If you want to keep most of your bed space check out our more slender aluminium fuel tank designs, some only require 9”.


Important Notes:

  • Mounting tabs extend out 1-1/2″
  • Add 2-12″ for cap height


Refueling Tank Installation Instructions



38 Gallon Refueling Tank - Part # TTR38

“A” “B” “C” “D” “E” “F” “G” Gallons
19″ 48 1/2″ 11″ 38

42 Gallon Refueling Tank - Part # TTR42

“A” “B” “C” “D” “E” “F” “G” Gallons
12″ 48 1/2″ 19″ 42

43 Gallon Refueling Tank - Part # TTR43

“A” “B” “C” “D” “E” “F” “G” Gallons
16 1/2″ 58″ 12″ 43

46 Gallon Refueling Tank - Part # TTR46

“A” “B” “C” “D” “E” “F” “G” Gallons
16-1/2″ 57″ 12″ 46

50 Gallon Refueling Tank - Part # TTR50

“A” “B” “C” “D” “E” “F” “G” Gallons
18″ 36-1/2″ 19″ 50

51 Gallon Refueling Tank - Part # TTR51

“A” “B” “C” “D” “E” “F” “G” Gallons
24″ 60 9″ 51

55 Gallon Refueling Tank - Part # TTR55

“A” “B” “C” “D” “E” “F” “G” Gallons
24″ 24  1/4″ 24″ 55

58 Gallon Refueling Tank - Part #TTR58

“A” “B” “C” “D” “E” “F” “G” Gallons
13″ 58″ 21″ 58

62 Gallon Refueling Tank - Part #TTR65

“A” “B” “C” “D” “E” “F” “G” Gallons
13″ 60″ 21″ 62

77 Gallon Refueling Tank - Part # TTR77

“A” “B” “C” “D” “E” “F” “G” Gallons
19″ 57″ 18″ 77

110 Gallon Refueling Tank - Part # TTR110

“A” “B” “C” “D” “E” “F” “G” Gallons
24″ 48-1/2″ 24″ 110

Rectangle Refueling Tanks

ATI refueling transfer tanks are designed and constructed with the industrial user in mind. Whether you are a farmer, contractor, municipality, or simply a private citizen, you can trust that your ATI tank will hold up and last a lifetime. We believe that in order to offer the best tank on the market, we need to start with the highest quality materials available. All of ATI’s tanks are manufactured here in the USA. Many manufacturers save a few dollars by outsourcing their fabrication without considering the overall quality of the finished product. Our refueling tanks are legal in all 50 states for gasoline, kerosene, methanol, diesel, and aviation fuel.

All ATI refueling tanks come standard with a 3/8″npt drain plug, two 2″npt bungs, a vent/prevent cap, and fully welded baffles to reduce slosh and add strength. These tanks are constructed from rugged diamond plate aluminum and are all available with a black or white powder coated finish. Custom Rectangle Refueling Tanks tanks are available upon request.  Click here to fill out a  custom tank form.
